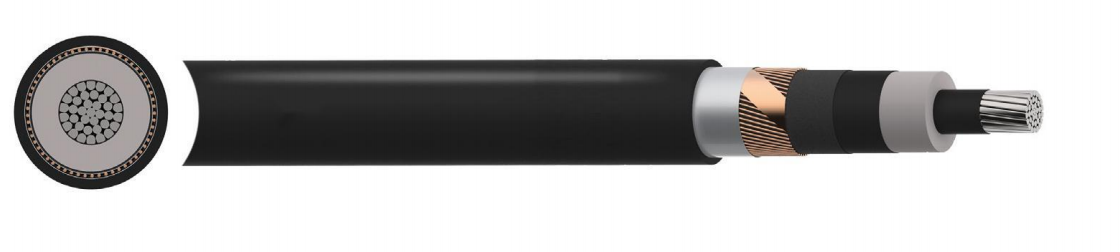

NA2XS(FL)2Y 6/10kV Energy Storage Cable
Description
Engineered to IEC 60502-2, IEC 60228, and UV-resistant ISO 4892-3 standards, this cable ensures durability in harsh environments. Rated at Uo/U (Um) 6/10(12)kV, it passes 21kV AC 50Hz testing for 15 minutes. Operating from -20°C to +60°C, conductor temperature reaches +90°C (250°C short-circuit for 5 sec). With a 15x overall diameter bending radius, it offers flexible installation for energy storage systems, ensuring reliability and safety.
Product parameters
-
Payment Type: L/C,T/T
-
Incoterm: FOB,CFR,DDP,DDU,CIF,Express Delivery,EXW,FAS,DAF,FCA,DES,CPT,CIP,DEQ
-
Min. Order: 150 Meter
Product Attributes
Packaging & Delivery
Product Description
Brand: Santai
Place Of Origin: China
Conductor Material: Aluminum
Insulation Materials: Xlpe
Place Of Origin: China
Conductor Material: Aluminum
Insulation Materials: Xlpe
Selling Units: Meter
Package Type: Export specific packaging
Package Type: Export specific packaging
NA2XS(FL)2Y 6/10kV Energy Storage Cable
Engineered to IEC 60502-2, IEC 60228, and UV-resistant ISO 4892-3 standards, this cable ensures durability in harsh environments. Rated at Uo/U (Um) 6/10(12)kV, it passes 21kV AC 50Hz testing for 15 minutes. Operating from -20°C to +60°C, conductor temperature reaches +90°C (250°C short-circuit for 5 sec). With a 15x overall diameter bending radius, it offers flexible installation for energy storage systems, ensuring reliability and safety.
We invest in testing solutions so you receive only the best Energy Storage Cable/Wind Power Special Cable/Solar Power Specical Cable
etc..Our world-class testing facility assures the quality and compliance of this cable through a continuous and rigorous testing regime.
etc..Our world-class testing facility assures the quality and compliance of this cable through a continuous and rigorous testing regime.
APPLICATION:
Medium voltage power cables with additional waterblocking properties for distribution networks and generation units,suitable for external installation including in direct in ground and in buried cable ducts. UV Resistant.
CHARACTERISTICS:
Voltage Rating:Uo/U (Um)6/10(12)kV
Test Voltage:21 kV AC 50Hz (15 mins)
Temperature Rating:-20°C to +60°C Permissible Conductor Operating Temperature: +90°C Permissible Short Circuit Temperature up to 5 sec: 250°C
Minimum Bending Radius:1 5 x overall diameter
CONSTRUCTION:
Conductor:Class 2 Stranded Aluminium
Conductor Screen:Semi-conductive material
Insulation:XLPE(Cross-Linked Polyethylene)
Insulation Screen:Semi-conductive material (bonded)
Longitudinal Waterblocking:Semi-conductive swellable tape
Screen:Copper wires and copper tape
Longitudinal Waterblocking:Swellable Tapes
Radial Waterblocking:Al/PET (Aluminium/Polyester) Tape tightly bonded to sheath
Outer Sheath:MDPE (Medium Density Polyethylene)
Sheath Colour:Red ● Black
DIMENSIONS:
ELECTRICAL CHARACTERISTICS:
